Product details
The impact roller is used to reduce the impact of blanking on the conveyor
belt at the receiving area of the belt conveyor.
Impact rollers are very helpful to protect conveyor belt when the rock or
other heavy material drop down.
Features and specifications:
Dual bearing configuration
Can Match CEMA JIS DIN GB standard
Heavy Duty Configuration
High quality rubber, thicker than industry standards

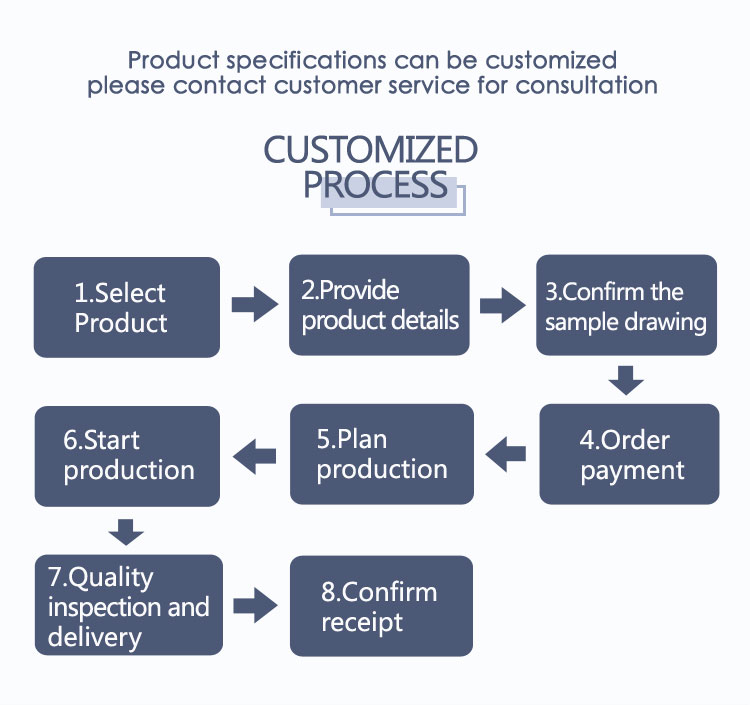

Can accept customize specification
Application and selection guide
Impact rollers support the belt near a loading point, using a resilient outer arrangement to address material impact. They should be considered with the chute, support frame and belt profile so that the whole loading zone works together.
Where this product fits
The key application question is how material lands on the belt. Describe particle size, loading trajectory and the location of the roller relative to the chute and adjacent support stations.
Information for a suitable proposal
Provide the roller and mounting dimensions, the existing resilient ring arrangement and photographs of any belt damage. Compare an impact roller station with an impact bed where the loading-zone layout calls for different support.

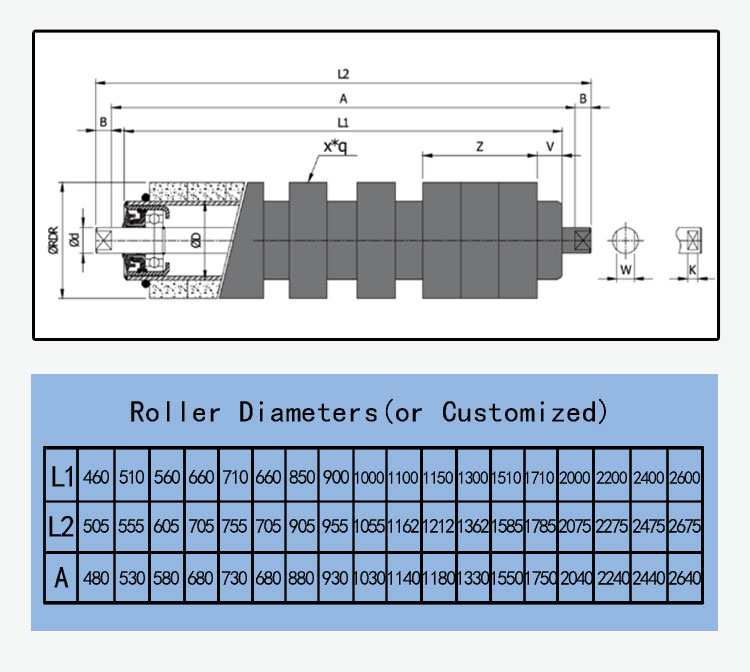

The roller, its mounting frame and the belt form one working assembly. Confirm the shell length, shaft end form and installed clearances against the existing structure. Photographs help identify the arrangement, while an approved drawing is preferable when the replacement must fit an established conveyor.
Installation and maintenance considerations
Inspect rings for missing pieces, uneven wear or trapped material. Check the underlying frame and neighbouring rollers while the conveyor is isolated for maintenance.
Include belt speed, conveyed material, expected contamination and the position on the conveyor in the inquiry. A carrying position, a loading point and a return strand expose a roller to different duties. Ask for the proposed bearing and sealing arrangement to be checked against those conditions rather than choosing by outside appearance alone.
For related options, explore roller sets and supporting arrangements or discuss the application with JuMing.
